SoftflowTM Design Fabric Air Diffusers

SOFTFLOW air jets have less mass then POWERFLOW jets, so they diffuse quickly. The area of noticeable air movement typically ranges from 2-10′ beyond the diffuser. These smaller jets are also very efficient at entrapping air, and SOFTFLOW diffusers mix air efficiently over broad areas with little noticeable air movement. SoftFlow air jets range from 0.25″ to 0.75″ in diameter.

Request Quote

  • Description

    Softflow Air Diffusers

    SOFTFLOW air jets have less mass then POWERFLOW jets, so they diffuse quickly. The area of noticeable air movement typically ranges from 2-10′ beyond the diffuser. These smaller jets are also very efficient at entrapping air, and SOFTFLOW diffusers mix air efficiently over broad areas with little noticeable air movement. SoftFlow air jets range from 0.25″ to 0.75″ in diameter.

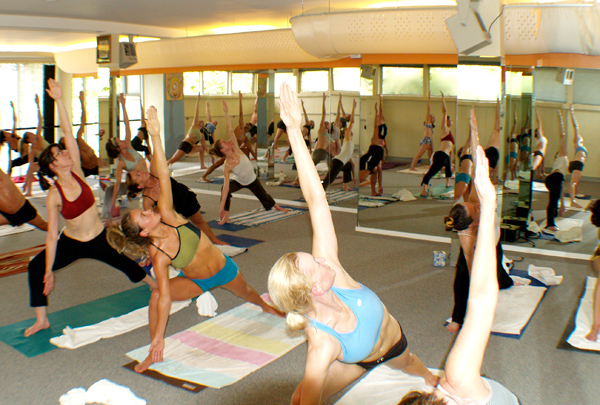

    SOFTFLOW designs are used when it is necessary to reduce air jet turbulence or the area of significant air movement. People comfort or sensitive processes are typical considerations. Air delivered through SoftFlow air jets provide a gentle air flow. Typical applications are spaces where emphasis is on optimum air diffusion and mixing, creating comfortable and pleasing environments. The methodology of designing SOFTFLOW air diffusion systems is basically the same as POWERFLOW. Both static pressure and air jet port diameter are particularly critical to meeting air system objectives. Application recommendations include; Office space, telecommunications, Restaurant, Food processing, Auditorium, Pools, Church, and Classroom.

  • Specifications

    Type of Fabric

    10 oz. Vinyl Coated Polyester
    High Temperature
    Poly Duct
    Polyester
    Polyethylene
    Xstatic

    Recommended Applications

    Church
    Classroom
    Food Processing
    Auditorium Pools
    Office Space
    Restaurant
    Telecommunications

    Type of Suspension

    Cable
    Flush Rail
    Halo Suspension
    HD Rail

    Options

    Air Jet Plugs
    Condensate Drain
    Draw Cords
    Fabric Damper
    Fittings
    Internal End Cap
    Logos
    Zipper and Velcro Connections

  • Fabric

    Polyethylene

    Polyethylene is resilient to most chemicals and will stand up to most air borne particles. It has a melt temperature of 180°F and can be cleaned by a spray hose nozzle and brush. Polyethylene is fire retardant and meets ASTM E-84 Class 1, AC 167, LC 1005. ICC-ES report :ESR-2646.

    Natural 211 Natural
    211
    Gray 212 Gray 212 White 213 White
    213
    DK Green 214 DK Green
    214
    Blue 215 Blue 215

    300 D Polyester

    Polyester is a premium grade coated fabric. It has a melt temperature of 350°F and can be laundered in small sections. Polyester is fire retardant meets ASTM E-84 Class 1, AC 167, LC 1005. ICC-ES report :ESR-2646.

    *Special order only.

    Black 311 Black 311 Gray 312 Gray 312 White 313 White
    313
    DK Green 314 DK Green
    314
    Md Blue 315 Md Blue
    315
    Tan 316* Tan 316*
    Red 317* Red-317*

    Anti-microbial Polyester

    Polyester is a premium grade uncoated fabric with an antimicrobial agent. It has a melt temperature of 350 °F and can be laundered in small sections. Polyester is fire retardant, meets ASTM E-84 Class 1 and is classified by UL.

    *Special order only.

    Black 711 Black 711 Gray 712 Gray 712 White 713 White
    713
    DK Green 714 DK Green
    714
    Md Blue 715 Md Blue
    715
    Tan 716* Tan 716*
    Red 717* Red 717*

    10 oz. Vinyl Coated Polyester

    Vinyl is a coated fabric that will stand up to most air borne particles. It has a melt temperature of 180 °F and can be cleaned by a spray hose nozzle and brush. Vinyl is fire retardant and meets ASTM E-84 Class 1.

    Black 411 Black
    411
    Gray 412 Gray
    412
    White 413 White
    413
    Green 414 Green
    414
    Blue 415 Blue
    415
    Tan 416 Tan 416
    Red 417 Red 417 Yellow 418 Yellow
    418

    XStatic Polyester

    XStatic is an anti-static coated fabric that features an antimicrobial agent. It has a melt temperature of 250 °F and can be laundered in small sections. XStatic is fire retardant and meets ASTM E-84 Class 1.

    Gray 512 Gray 512 White 513 White 513 Blue 515 Blue 515

    High Temp Fiberglass

    High Temp Fiberglass is a coated fiberglass fabric that features a melt temperature of 500 °F. It can also be used for other applications. The fiberglass is coated and can have air jets. High Temp fiberglass is fire retardant, meets ASTM E-84 Class 1 and is classified by UL.

    Gray 112 Gray 112 White 113 White
    113
    Blue 115 Blue 115
    Yellow 118 Yellow
    118
  • Suspension

    Cable

    Tension cable is the most economical option. Available for all diameters, Single cable up to 30″ diameter and double up to 48″ diameter and triple above that. Snaphooks are spaced on 36″ centers and available in plastic, stainless steel. Cable is available in galvanized, Stainless steel, and vinyl coated. The system consists of a cable (3/16″ diameter), turnbuckle, eyebolts and cable clamps.

    Halo Suspension

    New Halo Tension suspension system (HTS) gives the appearance of your FlowCon diffuser system to be inflated when the air handling system is off. This option can be used with a simple one row cable suspension or single HD rail to keep the FlowCon diffuser looking inflated without airflow. Limited from 10″ to 36″ diameter, this option is perfect for applications where deflated diffuser hand down is a problem. Sections can easily be taken down and washed with no extra labor. Components include standard one row tension cable or our HD single rail system.

    HD Rail:

    New HD anodized aluminum rail is our premium rail system. Sleek smooth look for our FlowCon fabric diffuser system. Available for all diameters, Single rail up to 30″ diameter and double up to 48″ diameter and triple above that. Gliders are spaced on 36″ centers and available in plastic. The system consists of HD rail, rail supports, couplers, and vertical supports (speed links). Radius bends are available to meet elbow radius.

    Flush Rail

    Flush anodized aluminum rail can be used for applications that FlowCon diffuser system has to be near ceiling. Flush rail has to be attached to a flat ceiling or T-Bar system. Flush mount rail is designed to support our ‘D’ Duct diffusers. D duct diffusers are used when ceiling height is a concern. A double Flush rail system is needed to support the ‘D’ duct diffuser. Sizes from 6″ to 18″ radius (12″ to 36″ wide) are available. The system consists of the Flush mount rail, and end piece. Radius bends are available.
