FlowCon Poly Duct and Convection Tubing
Poly ducts are a low cost, yet highly efficient way of distributing and mixing conditioned air. They are designed to diffuse and provide ventilation evenly over large areas.

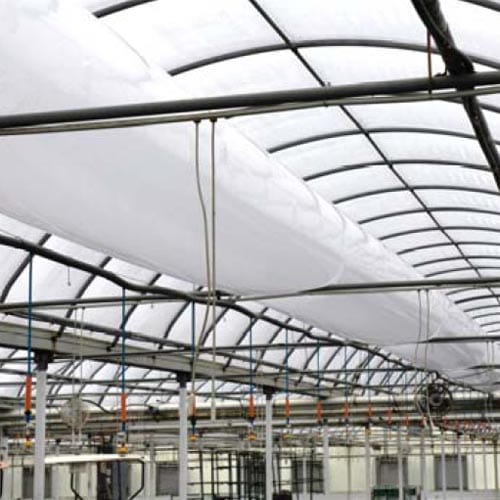

Poly ducts are made of lightweight, extruded polyethylene. They are typically used for “light-duty”, temporary installations, such as event tents, greenhouses and livestock buildings. Polyducts are straight, tubular diffusers. Fittings are not available.
Poly ducts are 4 mil thick with diameters that range from 8″ to 37″. They are available in standard clear and fr-white (flame retardant). Poly ducts usually have round air jet ports along the entire length, typically ranging from 1″ to 3″ and can only be punched symmetrically. Polyducts are supported by adhesive hangers which are applied by installer where needed. They can be attached to a cable or support by a S hook or wire tie. Adhesive or plastic clip supports are supplied based on 6′ centers
ADC, Inc. also fabricates complete air diffusion systems for permanent installations. FlowCon air diffusers are made with fabrics such as woven polyethylene, polyester, or vinyl. They are custom designs with a wide range of fittings available.
Please contact us for better pricing for amounts over 100 feet. Greater discounts for larger orders. Contact us for a quote.
|Item #||Item Name||Diameter||Material Type||List Price|
|PD-6||Poly Duct||6 in||Clear w/uv||$0.92|
|PD-8||Poly Duct||8 in||Clear w/uv||$0.97|
|PD-10||Poly Duct||10 in||Clear w/uv||$1.08|
|PD-12||Poly Duct||12 in||Clear w/uv||$1.14|
|PD-16||Poly Duct||16 in||Clear w/uv||$1.34|
|PD-18||Poly Duct||18 in||Clear w/uv||$1.41|
|PD-20||Poly Duct||20 in||Clear or white FR||$1.52|
|PD-24||Poly Duct||24 in||N/A||$1.76|
|PD-30||Poly Duct||30 in||Clear w/uv||$2.32|
|PD-37||Poly Duct||37 in||Clear w/uv||$2.68|
|PDH-6-22||WORMGEAR BANDS||6 to 22 in||N/A||$17.00|
|PDH-23-35||WORMGEAR BANDS||23 to 35 in||N/A||$24.00|
|PDH-36-48||WORMGEAR BANDS||36 to 48 in||N/A||$30.00|
|PDH-1/8-Cable-Cut Length||DIA. CABLE ( cut lengths)||1/8 in||N/A||$0.35|
|PDH-1/8-Cable-500'-1000' Spool||DIA. CABLE (500' or 1000' spools)||1/8 in||N/A||$0.21|
|PDH-1/8-Cable Clamp||Cable Clamp||1/8 in||N/A||$0.36|
|PDH-Adhesive Hanger||Extra Adhesive Hanger||N/A||N/A||$0.35|
|PDH-1/2-6||Jaw / Eye Turnbuckle||1/2 x 6 in||N/A||$24.00|
|PDH-3/8-6||Eye Bolt||3/8 x 6 in||N/A||$12.00|
