LinearflowTM Design Fabric Air Diffusers

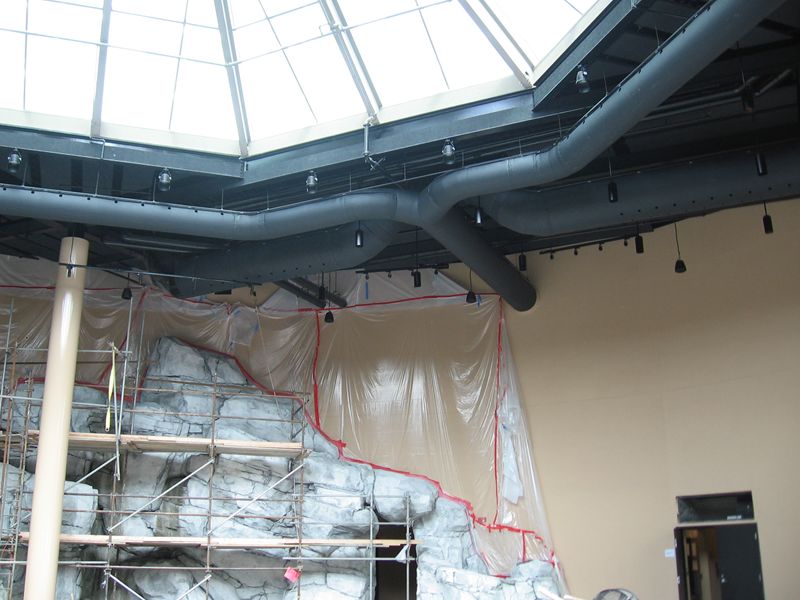

LINEARFLOW fabric air diffusers deliver air through vents providing a gentle air flow. The exact linear vent size and location will be determined in the design phase to optimize air delivery. LinearFlow air diffusers have an aesthetically pleasing look to a design. Linear vents deliver air through a mesh vent located down the entire length of the diffuser and diffuse the air with the area of noticeable movement ranges from 5′-20′ from the diffuser. Linear vents do not perform the same as our Powerflow diffusers. Because of the continuous vent a laminar effect may develop. Keep this in mind when designing a system. Application recommendations include; Office space, Restaurant, Retail, and Grocery stores.
-
Specifications
Type of Fabric
10 oz. Vinyl Coated Polyester
High Temperature
Permeable
Polyester
XstaticRecommended Applications
Grocery Stores
Office Space
Restaurant
RetailType of Suspension
Cable
Flush Rail
Halo Suspension
HD RailOptions
Condensate Drain
Draw Cords
Fabric Damper
Fittings
Internal End Cap
Logos
Zipper and Velcro Connections -
Fabric
Polyethylene
Polyethylene is resilient to most chemicals and will stand up to most air borne particles. It has a melt temperature of 180°F and can be cleaned by a spray hose nozzle and brush. Polyethylene is fire retardant and meets ASTM E-84 Class 1, AC 167, LC 1005. ICC-ES report :ESR-2646.
Natural
211 Gray 212 White
213DK Green
214 Blue 215300 D Polyester
Polyester is a premium grade coated fabric. It has a melt temperature of 350°F and can be laundered in small sections. Polyester is fire retardant meets ASTM E-84 Class 1, AC 167, LC 1005. ICC-ES report :ESR-2646.
*Special order only.
Black 311 Gray 312 White313 DK Green
314 Md Blue
315 Tan 316*Red 317*Anti-microbial Polyester
Polyester is a premium grade uncoated fabric with an antimicrobial agent. It has a melt temperature of 350 °F and can be laundered in small sections. Polyester is fire retardant, meets ASTM E-84 Class 1 and is classified by UL.
*Special order only.
Black 711 Gray 712 White
713DK Green
714 Md Blue
715 Tan 716*Red 717*10 oz. Vinyl Coated Polyester
Vinyl is a coated fabric that will stand up to most air borne particles. It has a melt temperature of 180 °F and can be cleaned by a spray hose nozzle and brush. Vinyl is fire retardant and meets ASTM E-84 Class 1.
Black
411 Gray
412 White
413Green
414 Blue 415 Tan 416Red 417 Yellow
418XStatic Polyester
XStatic is an anti-static coated fabric that features an antimicrobial agent. It has a melt temperature of 250 °F and can be laundered in small sections. XStatic is fire retardant and meets ASTM E-84 Class 1.
Gray 512 White
513 Blue 515High Temp Fiberglass
High Temp Fiberglass is a coated fiberglass fabric that features a melt temperature of 500 °F. It can also be used for other applications. The fiberglass is coated and can have air jets. High Temp fiberglass is fire retardant, meets ASTM E-84 Class 1 and is classified by UL.
Gray 112 White
113 Blue
115Yellow
118 -
Suspension
Cable
Tension cable is the most economical option. Available for all diameters, Single cable up to 30″ diameter and double up to 48″ diameter and triple above that. Snaphooks are spaced on 36″ centers and available in plastic, stainless steel. Cable is available in galvanized, Stainless steel, and vinyl coated. The system consists of a cable (3/16″ diameter), turnbuckle, eyebolts and cable clamps.
Halo Suspension
New Halo Tension suspension system (HTS) gives the appearance of your FlowCon diffuser system to be inflated when the air handling system is off. This option can be used with a simple one row cable suspension or single HD rail to keep the FlowCon diffuser looking inflated without airflow. Limited from 10″ to 36″ diameter, this option is perfect for applications where deflated diffuser hand down is a problem. Sections can easily be taken down and washed with no extra labor. Components include standard one row tension cable or our HD single rail system.
HD Rail
New HD anodized aluminum rail is our premium rail system. Sleek smooth look for our FlowCon fabric diffuser system. Available for all diameters, Single rail up to 30″ diameter and double up to 48″ diameter and triple above that. Gliders are spaced on 36″ centers and available in plastic. The system consists of HD rail, rail supports, couplers, and vertical supports (speed links). Radius bends are available to meet elbow radius.
Flush Rail
Flush anodized aluminum rail can be used for applications that FlowCon diffuser system has to be near ceiling. Flush rail has to be attached to a flat ceiling or T-Bar system. Flush mount rail is designed to support our ‘D’ Duct diffusers. D duct diffusers are used when ceiling height is a concern. A double Flush rail system is needed to support the ‘D’ duct diffuser. Sizes from 6″ to 18″ radius (12″ to 36″ wide) are available. The system consists of the Flush mount rail, and end piece. Radius bends are available.
